Smart Infill Development of 6 Apartments Behind Victorian Commercial Frontage

Palmers Green, Enfield, London, UK

This infill scheme at 269–271 Green Lanes in Palmers Green, Enfield, creates six new-build apartments on an underused backland site, accessed between two existing Victorian commercial properties. The project maximises the latent value of the site by delivering high-quality homes in a compact footprint, while meeting all relevant policy and regulatory standards.

All dwellings are designed to national space standards, with layouts that meet Part M4(2) for accessible dwellings. A wheelchair-accessible unit is located at ground floor level. The scheme is fully compliant with Building Regulations 2021, including energy performance (Part L), fire safety (Part B), and ventilation (Part F), and has formal sign-off from the London Fire Brigade.

Our role included the management and discharge of all planning conditions, production of detailed Building Regulations and construction-stage technical information, and coordination of the consultant team. We used our expertise to rationalise and improve the approved planning drawings—delivering more efficient floorplans and buildable elevations without compromising design quality.

We are currently working with the contractor under a design and build contract, with completion expected in spring 2026.

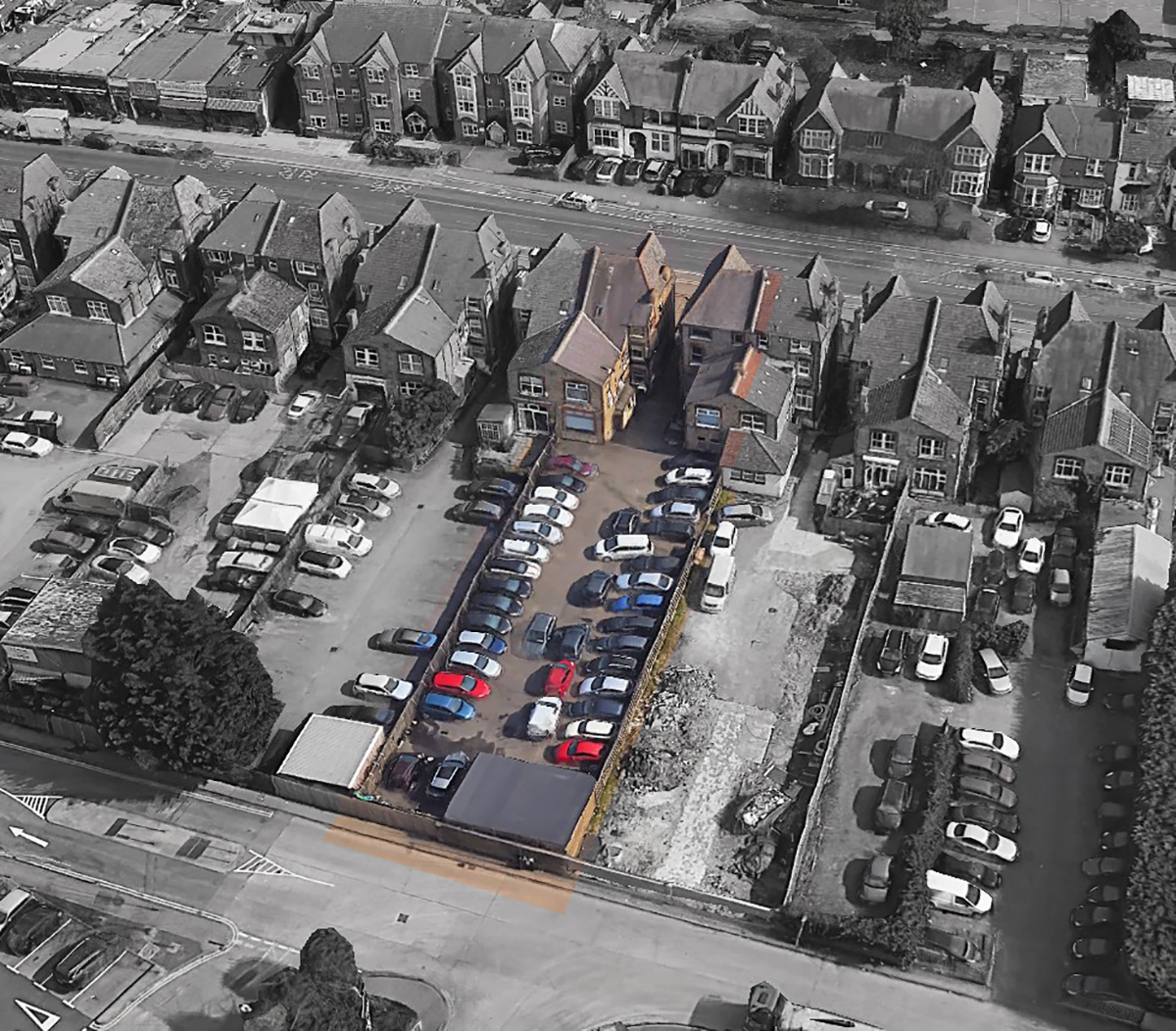

Aerial View of Site Aerial photo showing backland development site behind Green Lanes commercial frontage in Palmers Green, Enfield.

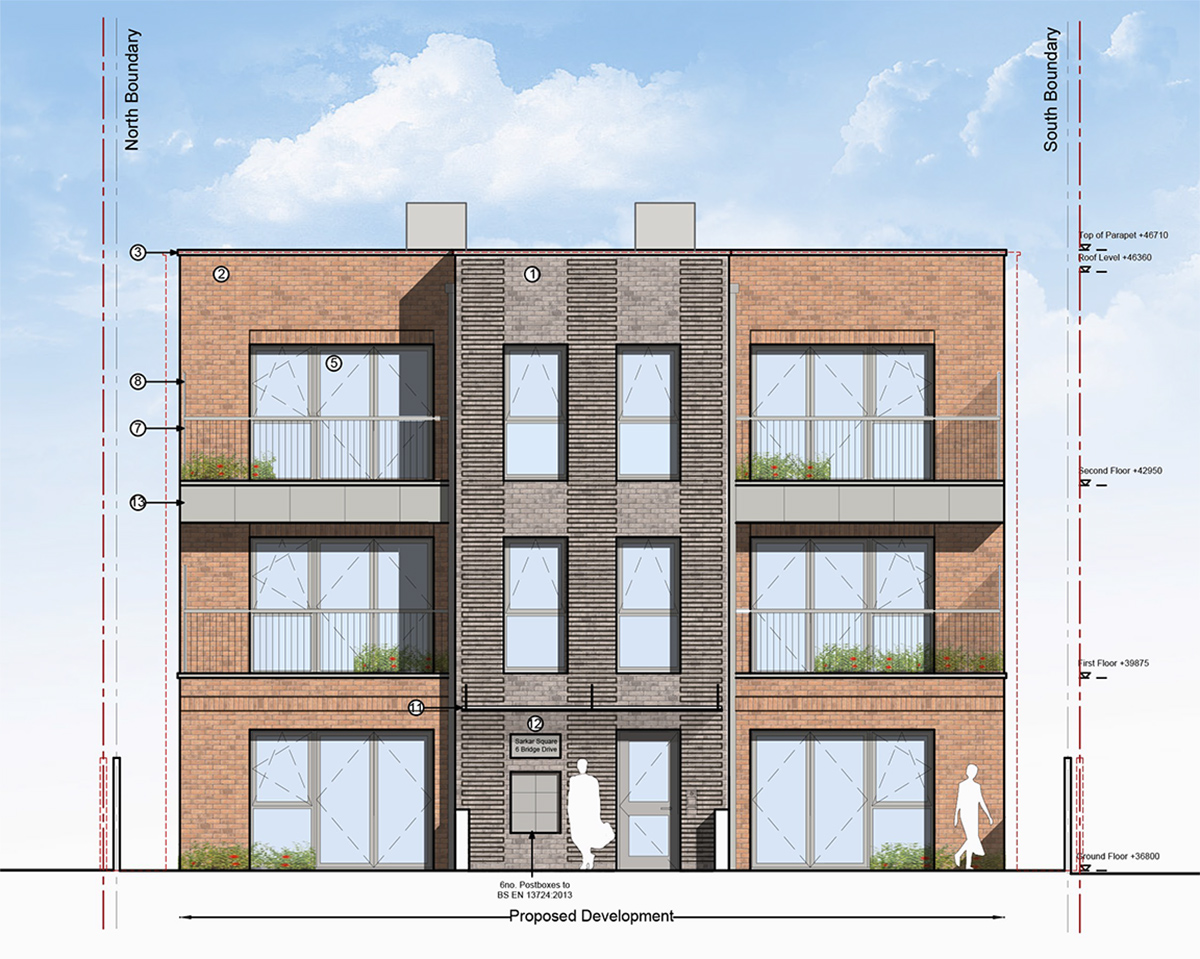

Proposed Front Elevation Front elevation drawing highlighting decorative brickwork entrance and street-facing façade of new residential block.

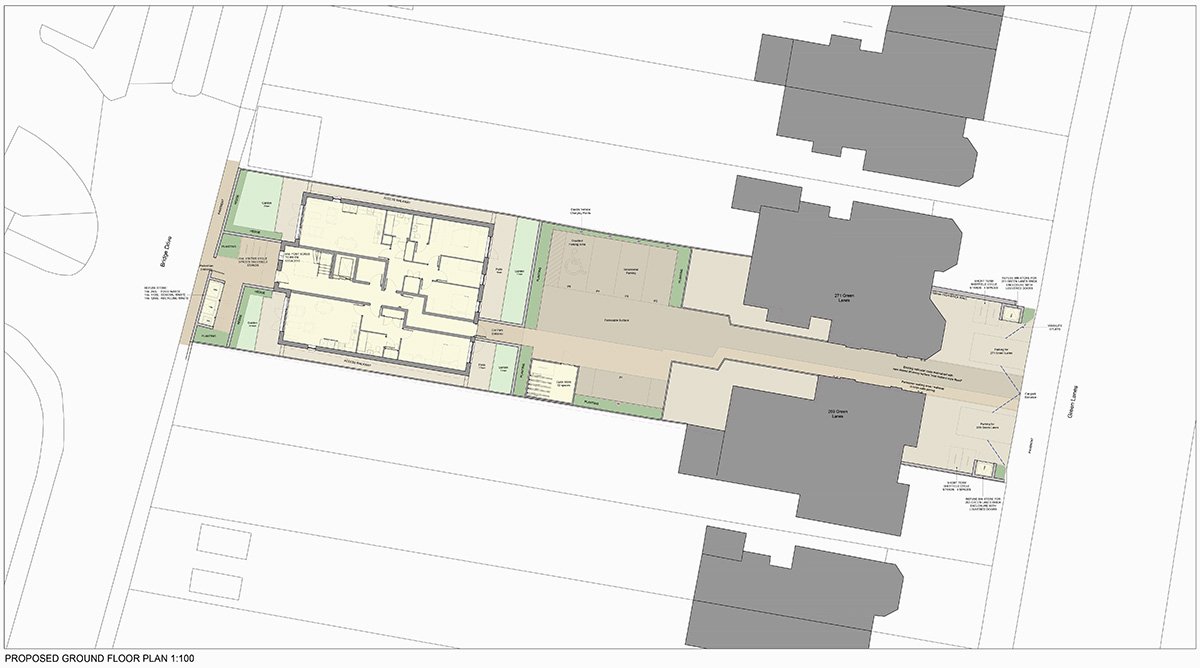

Proposed Site Plan Architectural site plan of 269–271 Green Lanes showing new apartment block layout and access route between Victorian buildings

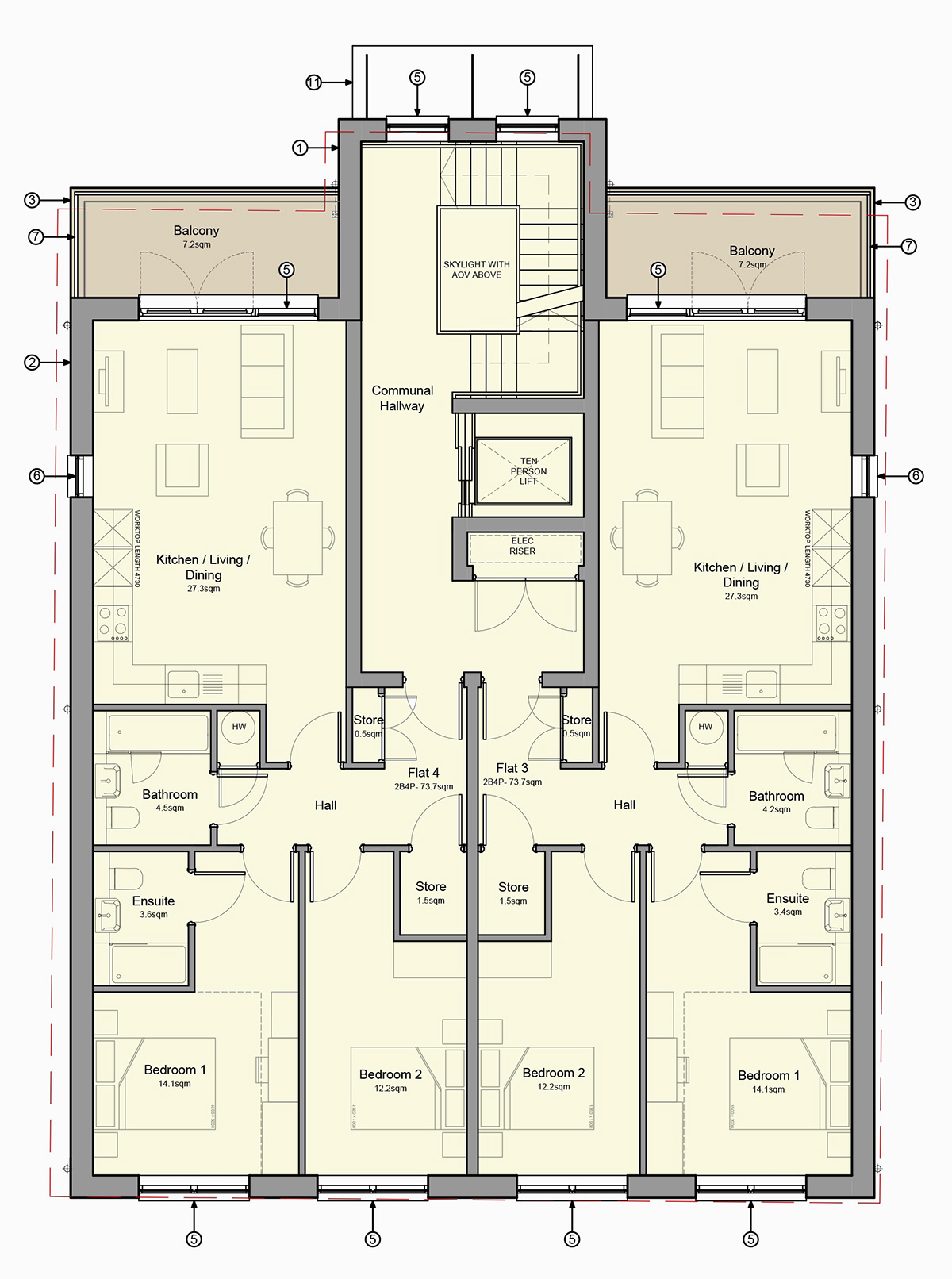

Proposed Floorplans Architectural floorplans showing layout of six new-build apartments, including M4(2) compliant units and ground floor wheelchair-accessible flat.

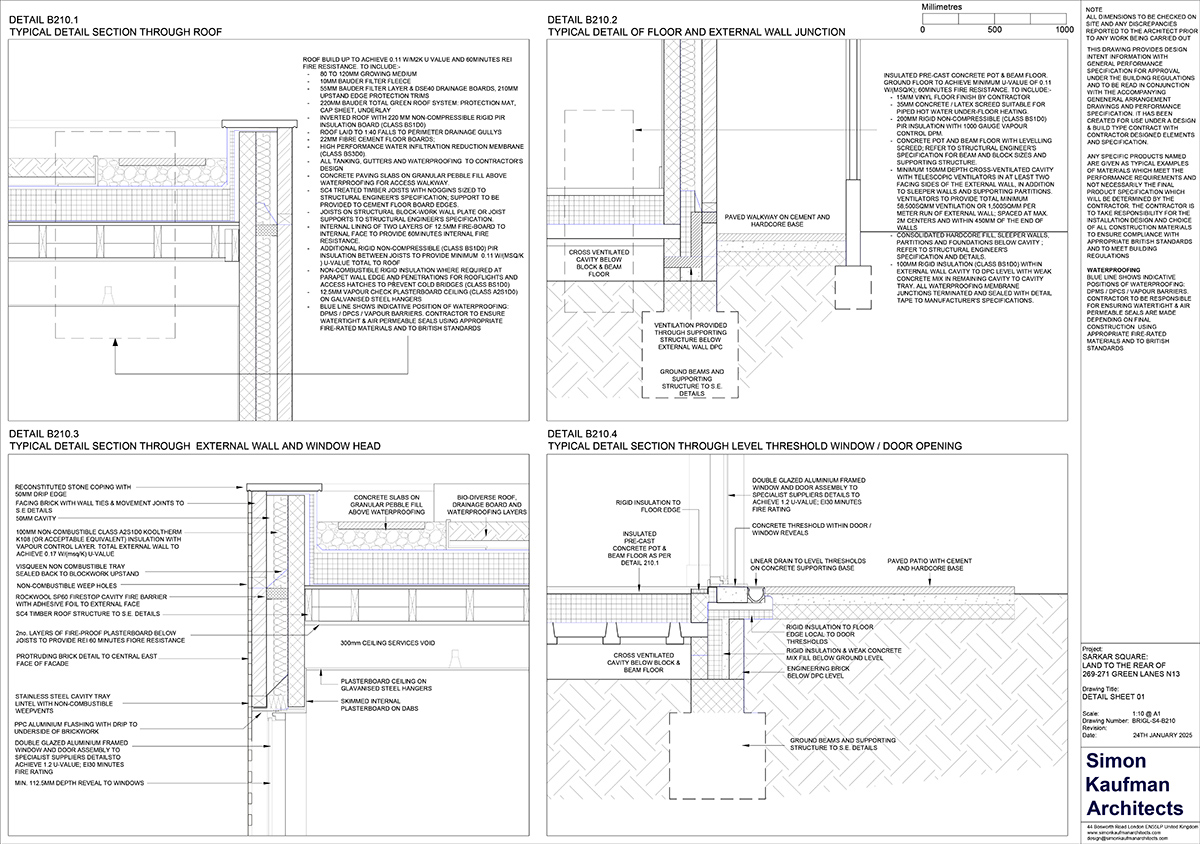

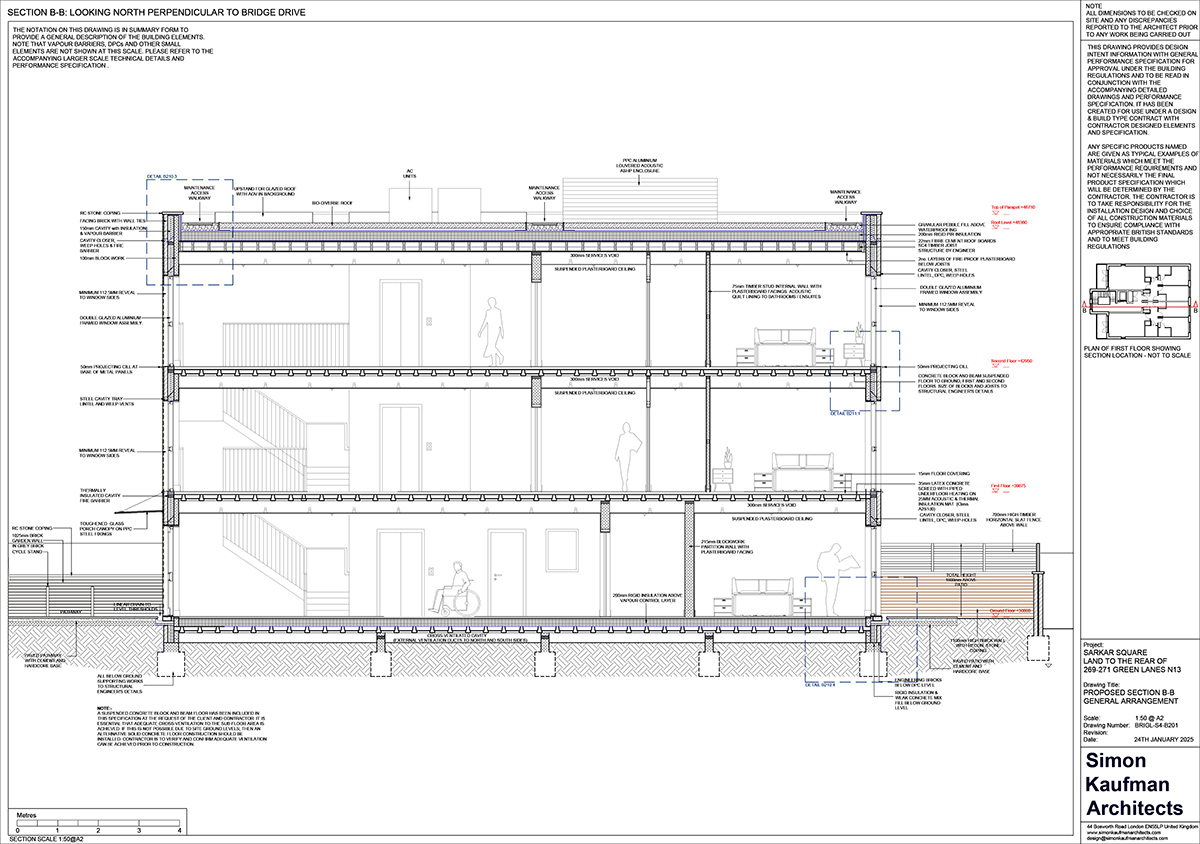

Building Regulations Section Technical section through the building showing insulation, floor build-up, structure, and roof details for Building Regulations compliance.1:10 Construction Details Detailed 1:10 construction drawings showing key wall, floor, and roof junctions for building control submission.







Expert guidance for residential infill and small-scale urban developments.

We help developers and landowners navigate planning, design, and technical requirements to deliver high-quality, policy-compliant residential schemes with maximised site potential..
